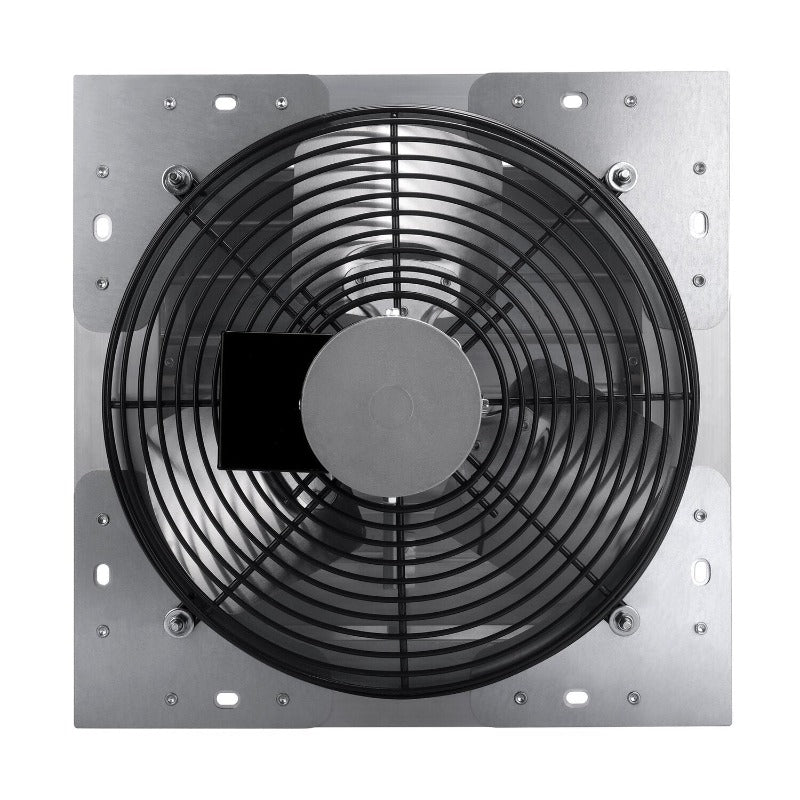

Tornado - 10 Inch Direct Drive Shutter Exhaust Fan - Enclosed Motor - Commercial, Residential, Industrial Use - 3 Speed - 620 CFM – 1/13 HP - UL Safety Listed
The Tornado 10 Inch Direct Drive Shutter Exhaust Fan is designed to install on the inside wall and eliminate the need for external framing and shutter. Quiet operation makes it ideal for commercial, environments.
Made from durable aluminum and powder coated steel construction. Aluminum blades are enclosed in a sturdy steel spiral wire guard. 0.52 AMPS, 1550 RPM, 620 CFM, 120V, 63 Watts, 60 Hz, 1/13 HP. Meets OSHA and UL507 standards, ETL Safety listed. 1 Year Limited Warranty.

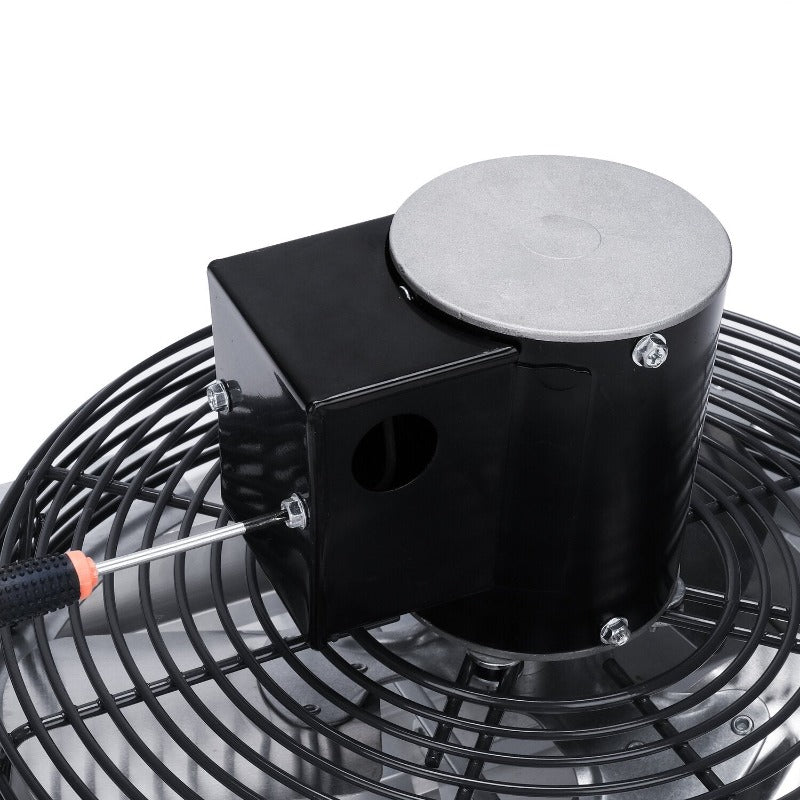

Air delivery with 3 speed settings 620/420/355 CFM. With a heavy duty thermally protected direct driven AC Totally Enclosed ball bearing motor with thermal cutoff for overheat protection and maintenance-free. 56 Decibels maximum.
Easy assembly and use. New frustration free packaging and easy assembly you will be using your new fan as quickly as you open the box. Rough Opening 9.1 x 9.1 Inch, Depth 2.13 Inch.
Tornado's new technology reduces the noise level making it one of the quietest metal fans on the market. Customer satisfaction is our priority. We will take care of any issues with our products guaranteed. Feel free to email us any time with any concerns.
| Product Type | Ventilation Fan - Shutter Exhaust Fan |
| Tornado Model Number | HI-FAN-SEF10-1PK |
| Product Name | 10" Direct Drive Shutter Exhaust Fan - Enclosed Motor |
| Assembly | Assembled |
| Bearing | Ball Bearing |
| Speed | 3 |
| CFM | 620/420/355 |
| RPM | 1550/1400/1300 |
| Carton Length (mm) | 370 |
| Carton Width (mm) | 370 |
| Carton Height (mm) | 250 |
| Carton Length (Inch) | 14.57 |
| Carton Width (Inch) | 14.57 |
| Carton Height (Inch) | 9.84 |
| Gross Weight (lb) | 8.38 |
| Product Net Weight (lb) | 6.30 |
| Product Length (mm) | 332 |
| Product Width (mm) | 156 |
| Product Height (mm) | 332 |
| Product Length (Inch) | 13.07 |
| Product Width (Inch) | 6.14 |
| Product Height (Inch) | 13.07 |
| Color Finish | White Zinc/Black |
| Construction | Aluminum / Steel |
| Horsepower | 1/13 |
| Fan Type | Home, Industrial, Commercial |
| Watts | 63 |
| Phase | Single-Phase |
| Amps | 0.52 |
| Hertz | 60 |
| Voltage | 120 |
| Motor Type | AC Totally Enclosed |
| Drive Type | Direct Drive |
| Decibels (DBA) | 56 |
| Mount Type | Wall Mount |
| Oscillation | Non-Oscillating |
| Vertical Tilting Angle | N/A |
| Remote Control | Optional |
| Power Cord Type | SJT |
| Power Cord Length (Ft) | 6.0 |
| Blade Diameter (Inch) | 10 |
| Blade Construction | Aluminum |
| Blade Type | Axial Flow Blade |
| Blade Quantity | 3 |
| Unit Per Carton | 1 |
| Limited Warranty Years | 1 |
| Approvals or Certifications | UL & cETL Listed, OSHA & UL507 Compliant |
| Rough Opening Inches | 9.1 x 9.1 |
| Depth Inches | 2.13 |
