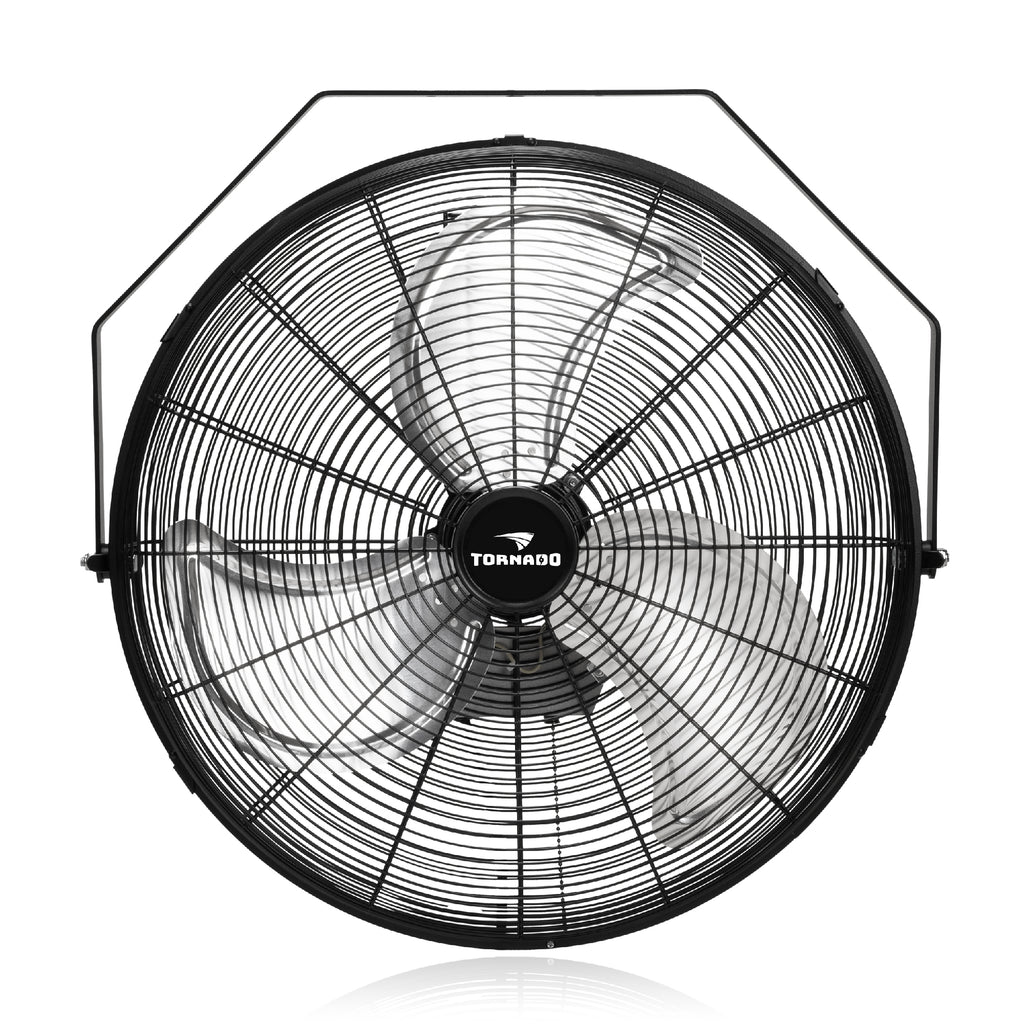

Tornado - 20 Inch High Velocity Metal Industrial Workstation Wall Mount Fan - For Commercial, Industrial, Residential, Greenhouse Use - TEAO Motor - 3 Speed - 4750 CFM – 1/6 HP - 6 FT Cord - UL Safety Listed
The Tornado 20'' High Velocity Metal Industrial Workstation Wall Mount Fan. Ideal for industrial, commercial, residential, shops, patio, backyard, warehouse, and workstations. Not graded for outdoor use.
Made from durable aluminum and powder coated steel construction, rust-resistant grille. Premium Totally Enclosed Air Over (TEAO) ball bearing motor. Extra-long 6 FT SJT-R power cord. 1 AMPS, 1500 RPM, 4750 CFM, 120V, 120 Watts, 60 Hz, 1/6 HP. Meets OSHA and UL507 standards, UL Safety listed. 1 Year Limited Warranty.
Air delivery with 3 speed settings 4750/4200/3800 CFM. With a heavy duty thermally protected direct drive AC totally enclosed ball bearing motor, protects the motor from workshop debris and all other dust. Full 180 degrees vertical tilting angle. 66 Decibels maximum.
Easy assembly and use. New frustration free packaging and easy assembly you will be using your new fan as quickly as you open the box. Hang it from the wall or the ceiling only takes you a second.
Tornado's new technology reduces the noise level making it one of the quietest metal fans on the market. Customer satisfaction is our priority. We will take care of any issues with our products guaranteed. Feel free to email us any time with any concerns.
| Product Type | Wall Fan - Industrial Metal Workstation Wall Fan |
| Tornado Model Number | HI-FAN-20HVWM-A-1P |
| Product Name | 20" High Velocity Metal Wall Fan - Enclosed Motor |
| Assembly | Assembled |
| Bearing | Ball Bearing |
| Speed | 3 |
| CFM | 4750/4200/3800 |
| RPM | 1500/1350/1200 |
| Carton Length (mm) | 590 |
| Carton Width (mm) | 185 |
| Carton Height (mm) | 645 |
| Carton Length (Inch) | 23.23 |
| Carton Width (Inch) | 7.28 |
| Carton Height (Inch) | 25.39 |
| Gross Weight (lb) | 16.50 |
| Product Net Weight (lb) | 14.00 |
| Product Length (mm) | 590 |
| Product Width (mm) | 169 |
| Product Height (mm) | 595 |
| Product Length (Inch) | 23.23 |
| Product Width (Inch) | 6.65 |
| Product Height (Inch) | 23.43 |
| Color Finish | Aluminum Color/Black |
| Construction | Aluminum / Steel |
| Horsepower | 1/6 |
| Fan Type | Home, Industrial, Commercial |
| Watts | 120 |
| Phase | Single-Phase |
| Amps | 1 |
| Hertz | 60 |
| Voltage | 120 |
| Motor Type | AC Totally Enclosed |
| Drive Type | Direct Drive |
| Decibels (DBA) | 66 |
| Mount Type | Wall Mount |
| Oscillation | Non-Oscillating |
| Vertical Tilting Angle | 180 |
| Remote Control | No |
| Power Cord Type | SJT-R |
| Power Cord Length (Ft) | 6.0 |
| Blade Diameter (Inch) | 20 |
| Blade Construction | Aluminum |
| Blade Type | Axial Flow Blade |
| Blade Quantity | 3 |
| Unit Per Carton | 1 |
| Limited Warranty Years | 1 |
| Approvals or Certifications | UL & cETL Listed, OSHA & UL507 Compliant |
During the first year, any components of this appliance found to be defective due to materials or workmanship will be replaced, at the manufacturer's discretion, at no charge to the original purchaser. The purchaser will be responsible for any removal or transportation costs.
We recommend that you keep the packaging your product arrived in so that you have the required packaging available in the event of a return.
Warranty Exclusions:
The warranty will not apply if damage is caused by any of the following:
- Power failure
- Damage in transit or when moving the appliance
- Improper power supply such as low voltage, defective household wiring or inadequate fuses
- Accident, alteration, misuse or abuse of the appliance such as using non-approved accessories, inadequate air circulation in the room or abnormal operating conditions (extreme temperatures)
- Use in commercial or industrial applications
- Fire, water damage, theft, war, riot, hostility or acts of God such as hurricanes, floods, etc.
- Use of force or damage caused by external influences
- Partially or completely dismantled appliances
Obtaining Service:
When making a warranty claim, please have the original bill of purchase with purchase date available. The purchaser will be responsible for any removal or transportation costs. Replacement parts and/or units will be new, re-manufactured or refurbished and is subject to the manufacturer's discretion.
For technical support and warranty service, please contact us.
